    • ISCAN IIIW Full automatic book scanner <<返回

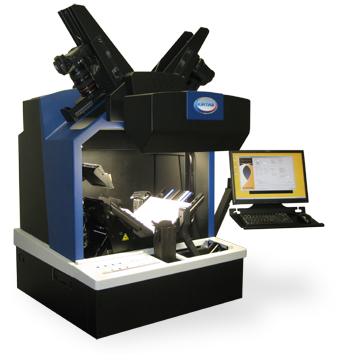

    ISCAN IIIW Full automatic book scanner
    Quality results are the primary objective of any book digitization project. Quality includes superior images, high accuracy OCR, comprehensive metadata, and complete book integrity. Achieving this will allow you to use the book images to their fullest capability both now and for future undefined needs. Do it once so they last forever!

    ISCAN IIIW Key Features at a Glance


    The new ISCAN IIIW system continues the ISCAN tradition by providing the SmartCradle™ with new automatic book centering that increases post-processing productivity. The 110 degree position is optimal for low stress, gentle book positioning and is ideal for fragile and rare books. Air flows and Enhanced Page Separator combine to achieve page separation and the newest SureTurn™ robotic arm with its vacuum head will gently lift and turn the page. Within the vacuum head is our Page Edge Sensor technology to detect multi-page or no-page lift conditions and automatically take programmable corrective action. The result is full book content integrity and quality. The newest ISCAN Manager Plus software provides a simple user interface to let you start digitizing quickly. The new interface provides easier monitoring of page capture and management for accuracy.

    Product Details

    • Quality, high-speed (2,890 pages per hour) capture
    • Patented SmartCradle dynamic book handler
    • Low-stress support for rare, fragile documents
    • Robotics that are gentler than the human hand

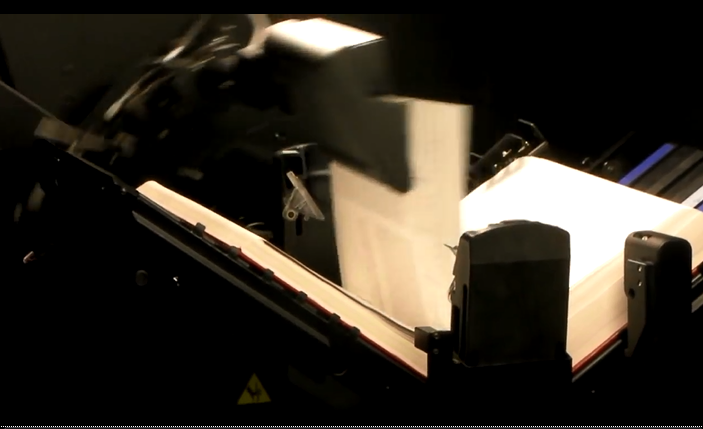

    • SureTurn robotic arm uses vacuum system to gently pick up and turn one page at a time
    • Digitize 3 & 4 ring notebooks and spiral bound
    • KABIS Manager Plus retrieves available metadata and creates MARC records, DublinCore, & MODS files

    Technical Specifications

    OPERATION   Automatic, Semi-automatic, Manual
    CYCLE SPEED   Up to 2,890 images per hour
    TONE   24-bit Color, JPG or CR2
     CAPTURE

    22.1 megapixel Canon Camera 325, 400, 500 or 600 ppi (book size and lens dependent)
     PAGE SIZE

    4.5” x 7” min. (11.5 x 17.8 cm) automated mode
    (smaller by manual page turning)
    11” x 14” max. (28.0 x 35.6 cm)
     PAPER    13–80 lb (49–300 gsm)
     BINDING    Up to 4” (10 cm)
     DIMENSIONS

    33” x 32” x 47” (W x D x H)
    84 x 82 x 121 cm (W x D x H)
     ACCURACY   Page Edge Sensor, Enhanced Page Separator
     WEIGHT   200 lbs (91 kg) approx.
     POWER

    Standard 110-240 VAC, 50/60 Hz
    15 Amp Receptacle
     CERTIFICATION



    AN/NZS, CE, CSA, EN, FCC, RoHS, UL, EAC


     OUTPUT

    JPEG or CR2

    • File Output from LIMB:  Color, grayscale, bitonal TIFF, JPEG, JP2, PDF, PDF/A, BMP, etc., METS compliant
    • File Output with LIMB and OCR added: METS/ALTO compliant, txt
     CONTROLLER

    Quad Core Xeon processors (min.)
    16 GB RAM
    1 TB hard drive
    Two Gigabit Ethernet cards
    Windows 7 64 bit Pro
    22'' Wide Screen Monitor
    Mini keyboard & mouse
